Compact CLICK PLUS CPU with Built-In Wireless Connectivity

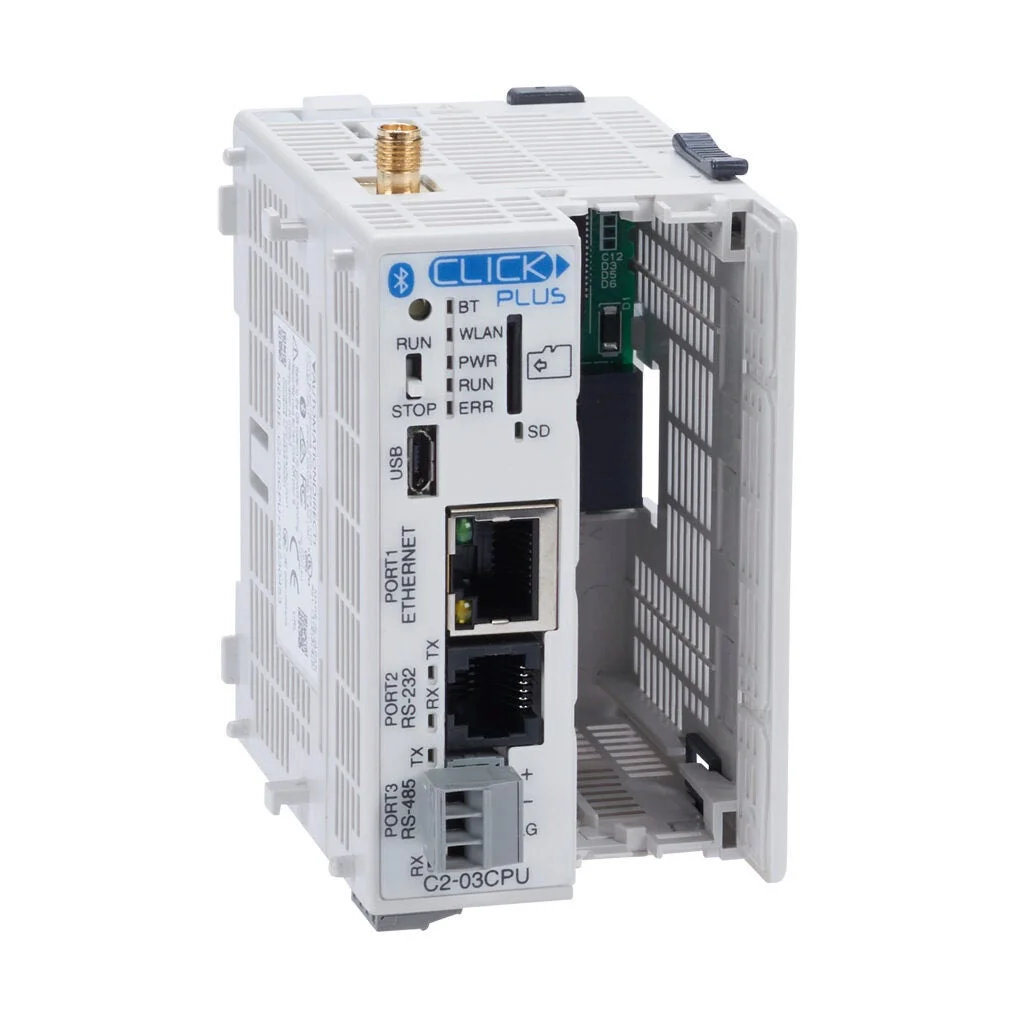

The CLICK PLUS C2-03CPU is a stackable micro-modular programmable logic controller CPU that brings modern connectivity to small-machine automation. Alongside a 10/100 Mbps Ethernet port, an RS-232 port, an RS-485 port and a micro-B USB programming port, this CPU integrates a 2.4 GHz WiFi LAN with Bluetooth Low Energy, so the controller can be commissioned, monitored and even logged into MQTT brokers without extra gateways. A microSD card slot provides removable storage for data logging and program archiving, while a real-time clock with battery backup keeps timestamps accurate through power interruptions.
The CPU itself carries no on-board I/O. Instead, it stacks with up to eight CLICK PLUS expansion modules, letting you scale discrete and analog I/O precisely to the application. Programming uses ladder logic in the CLICK programming software (v3.0 or later), and the free CLICK Remote PLC mobile app for Android and iOS gives you on-the-go visibility over WiFi or Bluetooth.
Key Features
- WiFi LAN (802.11 b/g/n, 2.4 GHz) and Bluetooth Low Energy built in, with RP-SMA antenna plug
- Ethernet 10/100Base-TX (RJ45), RS-232 (RJ12) and RS-485 (3-pin terminal) serial ports, plus micro-B USB port
- Protocol support: MQTT client, Modbus TCP client/server, Modbus RTU master/slave, ASCII in/out, EtherNet/IP explicit and implicit messaging adapter
- 8k words total memory, 8k ladder steps and 16 KB user data memory
- microSD card slot for removable media and data logging
- Real-time clock/calendar with battery backup and retentive memory
- Up to 8 PID loops and support for 8 expansion modules
- Powered from 24 VDC external supply
What’s in the Box
- CLICK PLUS series CPU (C2-03CPU)
- Antenna port cover
- Expansion port cover (pre-installed on the PLC unit)
- 4-position terminal block (C0-4TB, pre-installed on the PLC unit)
Note: a 24 VDC power supply is required. The CPU carries no on-board I/O — pair it with CLICK PLUS expansion modules to build the I/O mix your machine needs. Backup battery (D0-MC-BAT) is purchased separately.
